Hawaii Framework Reference Documentation

E kūlia i ka nu’u. Strive to reach the highest.

1. Introduction to Hawaii

The Hawaii Framework is a Java framework for developing Spring based applications.

It provides production-ready features and integrations based best practices and experience to boost projects.

The Hawaii Framework is developed internally at QNH and is used in projects for medium and large enterprise customers.

1.1. Spring Boot

Combining Spring Boot and the Hawaii production-ready features and auto configuration brings even more power and simplicity to developers, without sacrificing flexibility.

The Hawaii Framework also provides various Spring Boot Starters to automatically include the needed dependencies and trigger the auto configuration of the Hawaii production-ready features.

But it is important to mention that most of the Hawaii features can also used without using Spring Boot. In that case the desired features need to be configured manually by defining the appropriate Spring beans inside the application’s context.

2. Getting Started with Hawaii

TODO.

3. Hawaii Features

TODO.

3.1. Environments

TODO.

3.2. Configuration properties

Working with configuration properties in for example a .yml file, the following rules should be applied:

Property naming should be done in kebab-case

    example-property:
       sub-property-value: foo

3.3. Logging

The Hawaii logging feature provides a number of filter beans which add information that can log information about requests. The Hawaii logging is only usable in a servlet environment, because all filters use HttpServletRequest and HttpServletResponse to obtain information.

The main purpose of Hawaii logging is to write structured information into log lines, in such a way that it can be parsed by elastic search (Kibana). A specialized encoder is included to write out the log lines, as well as a bunch of filters that gather and, in some cases, create information to be included in each message. Hawaii logging currently only contains a logback-based encoder, so Hawaii logging is only usable if you use logback as your logging implementation.

3.3.1. Opentracing

If opentracing is available on the classpath, the logging can take log the trace and span id’s. For this you have to include the opentracing-api-extensions library. The configuration picks this up and configures the logging accordingly. Then the Tracer accepts TracerObserver`s which can react to new traces, spans and other opentracing events. See the `KibanaLogFieldsTracerObserver class.

If the opentracing’s span is enriched with a tag and value the observer is notified. If this tag is known to hawaii-logging (see OpenTracingKibanaLogField) then the tag and it’s value will propagate to kibana.

3.3.2. Filters

The next sections describe the individual filters contained in the Hawaii logging module. For more information on disabling and configuring individual filters, please refer to the Hawaii logging starter.

Kibana

The Kibana log filter gathers request data such as request method, uri and client ip address and stores it so it can be added to subsequent log messages.

Kibana cleanup

The Kibana cleanup filter empties all Kibana-specific data after the rest of the filter chain has been processed. It is intended to be used early in the chain, such that the cleanup happens last.

Request duration

This filter determines the duration of the request in milliseconds. It add the duration to the Kibana fields and logs it.

Request id

This filter generates a new request id, adds it to the Kibana fields and also writes it as a header on the response.

Transaction id

This filter reads an incoming transaction id from a request header, or generates a new one. The transaction id is written to a response header and added to the Kibana fields. The ability to read an incoming transaction id provides the ability to have multiple requests, spanning multiple systems within the same transaction.

User details

This filter retrieves the authenticated principal from the security context and stores the user name in the Kibana fields so that it gets included in each log message. This filter is only instantiated if Spring security is found on the class path.

Request/response

This filter logs the content type, size, headers and body of incoming requests, as well as the response status, headers and body. Optionally, the filter can log the response to a file if it exceeds a certain threshold size.

Container Name Response

This filter adds the container name to the response of a call.

Transaction Type

This filter retrieves the controller and the calling method, this will then be used to log it accordingly. For example: controller Foo.java, with method helloWorld(), will be displayed as Foo.helloWorld.

3.3.3. SQL

If the net.ttddyy:datasource-proxy library is present on the classpath, the SQL statements with parameters will be logged. The logging can be suppressed selectively by using the SqlStatementLogging#suppress() method.

3.4. Hawaii Time

HawaiiTime is not merely a convenient wrapper to instantiate new java.time date and time objects. It provides an application wide java.time.Clock reference which is particular useful for unit testing.

It is similar to Joda’s DateTimeUtils which also allows setting a fixed current time. However it is important to note that Joda’s DateTimeUtils uses a static variable to store the current time. HawaiiTime does not take this approach. Instead the HawaiiTime bean needs to be injected in any class that needs to instantiate new date and time objects. This approach is more flexible and e.g. has the benefit that unit tests can be run in parallel. See example usage below.

public class MyClass {

	private HawaiiTime hawaiiTime;

	public MyClass(HawaiiTime hawaiiTime) { (1)
		this.hawaiiTime = hawaiiTime;
	}

	public void doSomethingWithDate() {
		ZonedDateTime dateTime = this.hawaiiTime.zonedDateTime(); (2)
		// ...
	}
}


public class MyClassTests {

	@Test
	public void testDoSomethingWithDate() {
	    long millis = System.currentTimeMillis();
		HawaiiTime hawaiiTime = new HawaiiTime();
		hawaiiTime.useFixedClock(millis); (3)
		MyClass myClass = new MyClass(hawaiiTime);
		myClass.doSomethingWithDate();
		// ...
	}
}

1	Inject the `HawaiiTime` bean.
2	Use the injected `HawaiiTime` bean to instantiate new date and time objects.
3	In unit tests a fixed clock can be used to manipulate and predict the exact current time.

Another benefit of using HawaiiTime is that a fixed time can be used in a running application to test how it behaves on a given date or time.

Third-party libraries being used by the application do not use HawaiiTime and probably instantiate date and time objects based on the System time.

Hawaii uses UTC as default timezone but this can be changed by setting the hawaii.time.timezone configuration property. The provided value will be parsed by java.time.ZoneId#of(String zoneId) and supports different timezone formats like UTC, Europe/Amsterdam and GMT+1.

The creation of the HawaiiTime bean can also be disabled by setting hawaii.time.enabled to false.

3.5. Validation

Hawaii’s validation mechanism can be used to validate any object. It basically validates values, collects validation errors and stores them in a validation result. These validation errors are simple field / error code combinations.

Hawaii’s Validator is inspired on Spring’s org.springframework.validation.Validator mechanism. However Hawaii’s validator mechanism uses it’s own ValidationResult instead of Spring’s org.springframework.validation.Errors. The main difference is that Hawaii’s ValidationResult does not bind directly the object being validated. This also gives the possibility to add errors for specific keys that are not direct properties of the object being validated.

Hawaii’s validation mechanism also provides additional sugar like Hamcrest matcher support to write human readable validating code, the capability to validate and automatically throw a ValidationException in case of errors etc.

Like Spring’s validation mechanism the Hawaii validation mechanism also supports the notion of nested error paths which also stimulates to re-use validators.

Let’s take an example. Imagine a Customer object with common name, e-mail, and address fields. A validation result could for example contain the following field / error code combinations:

first_name = required (1)
last_name = max_length_exceeded
email = invalid
addresses = primary_address_required (2)
addresses[0].type = invalid (3)
addresses[0].street_name = max_length_exceeded
addresses[0].postal_code = invalid
addresses[0].city = max_length_exceeded
addresses[0].country_code = required

1	The field `first_name` has an `required` error code.
2	The field `adresses` (an array in this case) has `primary_address_required` error code.
3	The field `type` of the first address in the `addresses` array has a `invalid` error code.

The example demonstrates simple field errors (like first_name) but also storing errors for arrays and nested paths (addresses[0].type). In theory a field could also have multiple error codes if needed.

Implementors should typically only implement the org.hawaiiframework.sample.validator.Validator#validate(Object, ValidationResult) method as the other methods in the interface are already implemented using the interface’s default methods.

A generic EmailValidator would look like:

import org.hawaiiframework.validation.ValidationResult;
import org.hawaiiframework.validation.Validator;
import org.springframework.stereotype.Component;

import java.util.regex.Pattern;

@Component
public class EmailValidator implements Validator<String> { (1)

    public static final String EMAIL_PATTERN = "^[_A-Za-z0-9-\\+]+(\\.[_A-Za-z0-9-]+)*@[A-Za-z0-9-]+(\\.[A-Za-z0-9]+)*(\\.[A-Za-z]{2,})$";

    private Pattern pattern;

    public EmailValidator() {
        this.pattern = Pattern.compile(EMAIL_PATTERN);
    }

    @Override
    public void validate(String email, ValidationResult validationResult) { (2)
        if (!pattern.matcher(email).matches()) {
            validationResult.rejectValue("invalid"); (3)
        }
    }
}

1	Implement the `Validator` (in this case a `String`).
2	Override the `Validator#validate(Object, ValidationResult)` method.
3	In case the e-mail is invalid, reject the value with error code `invalid` and store it in the validation result.

The CustomerValidator would look like:

import org.apache.commons.lang3.StringUtils;
import org.hawaiiframework.sample.validator.EmailValidator;
import org.hawaiiframework.validation.ValidationResult;
import org.hawaiiframework.validation.Validator;
import org.springframework.stereotype.Component;

import java.util.List;

import static org.hamcrest.Matchers.greaterThan;

@Component
public class CustomerInputValidator implements Validator<CustomerInput> { (1)

    private final EmailValidator emailValidator;
    private final AddressValidator addressValidator;

    public CustomerInputValidator(final EmailValidator emailValidator,
            final AddressValidator addressValidator) { (2)
        this.emailValidator = emailValidator;
        this.addressValidator = addressValidator;
    }

    @Override
    public void validate(CustomerInput customer, ValidationResult validationResult) { (3)

        // first name validation
        String firstName = customer.getFirstName();
        if (StringUtils.isBlank(firstName)) {
            validationResult.rejectValue("first_name", "required");
        } else {
            validationResult.rejectValueIf(firstName.length(), greaterThan(25), "first_name",
                    "max_length_exceeded");
        }

        // last name validation
        String lastName = customer.getLastName();
        if (StringUtils.isBlank(lastName)) {
            validationResult.rejectValue("last_name", "required");
        } else {
            validationResult.rejectValueIf(lastName.length(), greaterThan(25), "last_name",
                    "max_length_exceeded");
        }

        // e-mail validation
        String email = customer.getEmail();
        if (StringUtils.isBlank(email)) {
            validationResult.rejectValue("email", "required");
        } else if (email.length() > 100) {
            validationResult.rejectValue("email", "max_length_exceeded");
        } else {
            validationResult.pushNestedPath("email");
            emailValidator.validate(email, validationResult);
            validationResult.popNestedPath();
        }

        // adresses validation
        List<Address> addresses = customer.getAddresses();
        if (addresses == null || addresses.size() == 0) {
            validationResult.rejectValue("addresses", "required");
        } else {
            // addresses array validations
            long primaries = addresses.stream()
                    .filter(address -> address.getType() == AddressType.PRIMARY)
                    .count();
            if (primaries == 0) {
                validationResult.rejectValue("addresses", "primary_address_required");
            } else if (primaries > 1) {
                validationResult.rejectValue("addresses", "only_1_primary_address_allowed");
            }
            if (addresses.size() > 3) {
                validationResult.rejectValue("addresses", "max_array_length_exceeded");
            }
            // address validations
            for (int i = 0; i < addresses.size(); i++) {
                validationResult.pushNestedPath("addresses", i);
                addressValidator.validate(addresses.get(i), validationResult);
                validationResult.popNestedPath();
            }
        }
    }
}

1	Implement the `Validator` (in this case a `Customer`).
2	Inject other validators (`EmailValidator`, `AddressValidator`) to be re-used.
3	Override the `Validator#validate(Object, ValidationResult)` method.

3.6. Web

3.6.1. Global Exception Handler

TODO.

3.6.2. REST Representations

TODO.

Input Converter

TODO.

Resource Assembler

TODO.

4. Hawaii Starters

TODO.

4.1. hawaii-starter

TODO.

4.2. hawaii-starter-logging

The hawaii-starter-logging delivers a fully configured set of filters that are added to the filter chain in the configured order. The starter contains a default configuration, which can be overridden by adding properties to your configuration. The default configuration consists of the filters listed in the table below.

Filters with a negative order are added to the filter chain before any filters that modify or wrap the request and/or response. The UserDetailsFilter depends on Spring Security (it logs the authenticated Principal) and therefor has a higher order.

Table 1. Default filter configuration
Filter	Enabled	Order	Additional properties
kibana-log	true	-108	http-header: the header that contains the client ip address. Defaults to `X-Hawaii-Frontend-IP-Address`. If no such header is present, the filter uses the remote address from the request.
kibana-log-cleanup	true	-110	-
request-duration	true	-109	-
request-id	true	-106	http-header: the response header to which the request id will be writen. Defaults to `X-Hawaii-Request-Id`.
request-response	true	-105	fallbackToFile: write the response to a file if its size exceeds `maxLogSize`, default value is `true` directory: the directory where files are written to, defaults to `/tmp` maxLogSize: the maximum log size to write to the log, see `fallbackToFile`, default value is `50k` allowedContentTypes: For console logging, the allowed content types, empty means allow all. Default value: application/json text/plain text/xml
transaction-id:	true	-107	http-header: the request header name that may contain an incoming transaction id, and the response header to which the transaction id is written. Defaults to X-Hawaii-Tx-Id`.
user-details	true	110	-

An example of the default configuration is available in the appendix.

4.2.1. How to use

4.3. hawaii-starter-rest

TODO.

4.4. hawaii-starter-test

TODO.

4.5. hawaii-starter-async

The asynchronous request execution in Hawaii is built on top of the scheduling in Spring Framework, see the Spring documentation for a baseline explanation.

There are two main additions:

More flexibility in executor configuration
Task timeout

4.5.1. Executor configuration

The Hawaii async configuration allows the definition of executors. An executor can be viewed as a thread pool. An executor configuration looks something like this:

executors:
-
    name: default
    corePoolSize: 10
    keepAliveTime: 60
    maxPendingRequests: 60
    maxPoolSize: 60

The lowest level of configuration is a task. Tasks are grouped into systems. A system could be some backend system against which requests are executed, or a database on which queries are executed. Each request or query represents a task in Hawaii async terminology. System and task configuration looks like this:

systems:
  -
      name: mySystem
      defaultExecutor: myExecutor
      defaultTimeout: 3
      tasks:
        -
            method: myTask
            executor: mySpecialExecutor
            timeout: 1
        -
            method: myOtherTask

As can be seen, an executor can be assigned on system level. This will be the default executor for all the tasks in the system, unless a specific executor is configured for a task, such as myTask in the example. The same mechanism applies to the timeout settings. It is therefore perfectly legal to configure a task without any properties. However, it remains necessary to define the task in the configuration, otherwise it can’t be used, i.e. every task must be defined in the configuration.

Finally, there are some global properties:

defaultExecutor: default
defaultTimeout: 10
asyncTimeoutExecutorPoolSize: 10

These define the default executor and timeout. These defaults will be used if no executor or timeout is defined on either task or system.

The asyncTimeoutExecutorPoolSize property defines the number of threads that are used to run timeout tasks. See task timeout.

4.5.2. Task timeout

Another addition is automatically timing out tasks. For each task that is executed, the Hawaii async framework enqueues a cancellation task into a separate executor. If the timeout moment arrives, the timeout task is executed and will attempt to abort the actual task being executed. The actual task will remove the timeout task when it finishes, so if a task runs within its time limit, the timeout task will never be run.

4.5.3. Usage

In practice, using the Hawaii asynchronous framework is not that different from using Spring’s: asynchronous execution must be enabled with @EnableAsync and methods that are to be executed asynchronously must be annotated with the @Async annotation, and they must have a Future typed return value.

Additionally, an asynchronous configuration must be defined in the file identified by the hawaii.async.configuration property, which is set to ./config/async-config.yml by default.

The essential difference in usage is that where Spring allows the specification of an executor by specifying the value of the @Async annotation, the Hawaii additions require specifying the Task name instead of the executor. The Hawaii async configuration will take care of routing the execution to the correct Executor.

HTTP

To execute http requests using the Hawaii async framework, you’ll need to use the HawaiiHttpComponentsClientHttpRequestFactory to enable timing out of tasks that run too long.

You can use the LoggingClientHttpRequestInterceptor to log requests and responses made over http. Note that since this interceptor consumes the response, this will only work if you wrap the HawaiiHttpComponentsClientHttpRequestFactory in a org.springframework.http.client.BufferingClientHttpRequestFactory, or take other measures to make sure the response can be read more than once.

4.5.4. Components

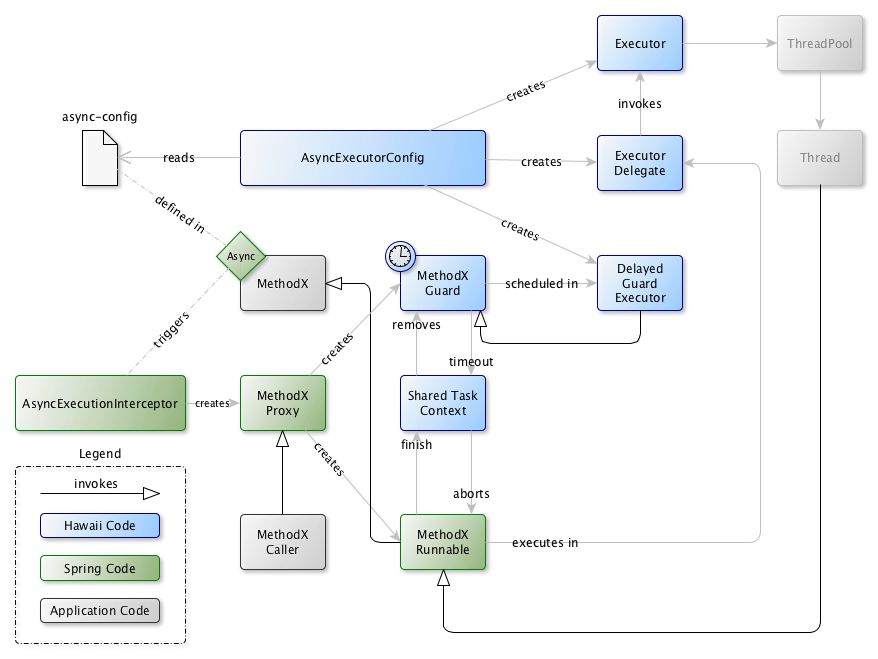

The following diagram shows the various components in the Hawaii async solution:

In the diagram, MethodX is the call that must be executed asynchronously, for example service or repository method. The @Async annotation causes Spring to create a proxy around this method. The proxy locates the executor, which in the Hawaii case is a DelegatingExecutor which will delegate to the real executor specified for the task. The executor takes the MethodX Runnable and executes it on an available thread.

Additionally, a delayed (by the configured timeout) task, the MethodX Guard is created and passed to the Delayed Guard Executor.

Both tasks share the Shared Task Context which allows them to share logging context, and which also provides access for the guarded task to remove the guard task upon completion, and for the guard task to abort the guarded task upon activation.

4.5.5. Processing

The sequence below shows the components working together to execute a task.

The sequence below shows the flow when a task times out.

4.5.6. Opentracing

The async component can collaborate with opentracing and start a new span for each task. For this you have to include the opentracing-api library. The configuration picks this up and configures the logging accordingly.

You can disable this behaviour by explicitly turning this off, set the hawaii.logging.opentracing.enabled value to false. The default is true, even if the property is not present.

4.5.7. SQL

If the net.ttddyy:datasource-proxy is present on the classpath, then SQL statements can be terminated. This relies on the JDBC driver’s implementation of the Statement#cancel() method. Note, the statement must be part of an `@Async('db-name.query-name') annotatied method.

# ===================================================================
# HAWAII PROPERTIES
#
# This sample file is provided as a guideline. Do NOT copy it in its
# entirety to your own application.               ^^^
# ===================================================================

# HAWAII SPRING BOOT DEFAULTS
   spring:
     jackson:
       date-format: com.fasterxml.jackson.databind.util.ISO8601DateFormat
       property-naming-strategy: CAMEL_CASE_TO_LOWER_CASE_WITH_UNDERSCORES
       serialization:
         indent-output: false
         write-dates-as-timestamps: false
         write-date-timestamps-as-nanoseconds: false
   logging:
     level:
       org.hawaiiframework: INFO
       org.springframework: INFO
   hawaii:
     time:
       # Enable creation of the `HawaiiTime` bean.
       enabled: true
       # The timezone to use like `UTC`, `Europe/Amsterdam` or `GMT+1`.
       timezone: UTC
     async:
       # location of the Hawaii async configuration file
       configuration: ./config/async-config.yml
     logging:
       opentracing:
         # Must set explicitly to false if opentracing is not required. If the property is not present, the default is "enabled = true".
         enabled: true
       # For console logging, the allowed content types, empty means allow all,
       # including binary files, so not a good idea.
       allowed-content-types:
       - application/json
       - text/plain
       - text/xml
       - application/vnd.spring-boot.actuator.v1+json
       - application/vnd.spring-boot.actuator.v3+json
       fields-to-mask:
         - password
         - keyPassphrase
       filters:
         kibana-log-cleanup:
           enabled: true
           order: -900
         request-duration:
           enabled: true
           order: -800
         software-version:
           enabled: true
           order: -792
         container-name:
           enabled: true
           order: -791
           http-header: X-Hawaii-Hostname
           hostname: ${HOSTNAME:localhost}
         oidc:
           # Must set explicitly to false if oidc is not required. If the property is not present, the default is "enabled = true".
           enabled: true
           order: -790
         opentracing-response:
           # Must set explicitly to false if opentracing is not required. If the property is not present, the default is "enabled = true".
           enabled: true
           order: -790
         open-telemetry-response:
           # Must set explicitly to false if open telemetry is not required. If the property is not present, the default is "enabled = true".
           enabled: true
           order: -790
           http-header: ${OPEN_TELEMETRY_TRACE_ID_HEADER:trace-id}
         client-ip-log:
           # Must set explicitly to false if client ip logging is not required. If the property is not present, the default is "enabled = true".
           enabled: true
           order: -700
           http-header: X-Hawaii-Frontend-IP-Address
         transaction-type:
           # Must set explicitly to false if client ip logging is not required. If the property is not present, the default is "enabled = true".
           enabled: true
           order: -600
         business-transaction-id:
           # Must set explicitly to false if client ip logging is not required. If the property is not present, the default is "enabled = true".
           enabled: true
           order: -500
           http-header: X-Hawaii-Business-Tx-Id
         transaction-id:
           # Must set explicitly to false if client ip logging is not required. If the property is not present, the default is "enabled = true".
           enabled: true
           order: -500
           http-header: X-Hawaii-Tx-Id
         request-id:
           # Must set explicitly to false if client ip logging is not required. If the property is not present, the default is "enabled = true".
           enabled: true
           order: -400
           http-header: X-Hawaii-Request-Id
         request-response:
           # Must set explicitly to false if client ip logging is not required. If the property is not present, the default is "enabled = true".
           enabled: true
           order: -300

         user-details:
           enabled: true
           order: 110
